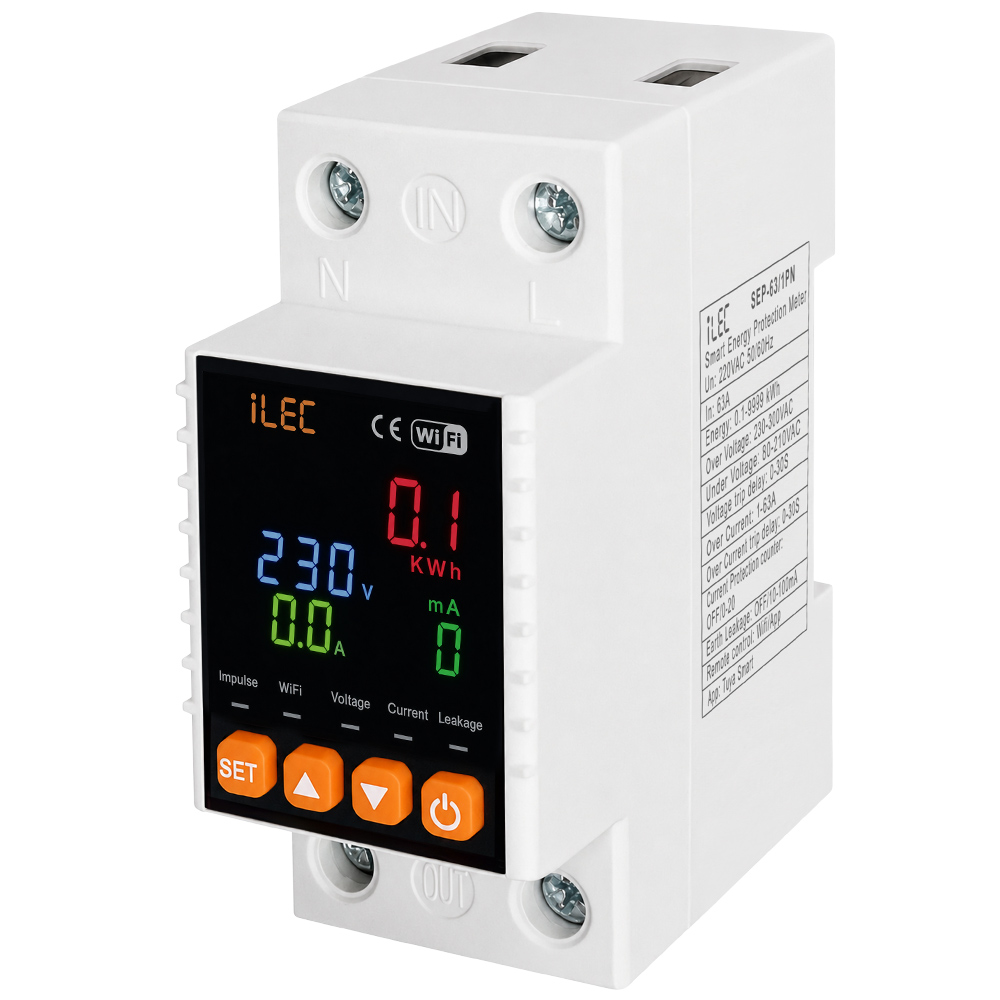

SMART ENERGY PROTECTION METER

Model SEP-63/1PN

  • The WIFI Smart Circuit Breaker Protector is designed for AC 50Hz/60Hz circuits with a rated voltage of 220V.
  • It enables remote control, multi-user access, and scheduled ON/OFF switching.
  • It is suitable for use in homes, schools, factories, municipal projects, street lighting, agricultural motors, water pumps, floor heating systems, water heaters, and other remote intelligent power control applications.

Features

  • This product features a backlit LCD display for real-time monitoring of voltage, current, leakage current, and energy consumption.
  • It is equipped with a high-precision metering chip 24-bit ADC sampling for accurate measurement.
  • It supports adjustable settings for overvoltage, undervoltage, overcurrent, leakage current, and delay time, with cumulative energy monitoring. A one-touch factory reset function is also available.
  • When connected to a network, the device supports remote ON/OFF control and real-time monitoring via a mobile app. Parameters such as voltage, current, leakage current, and energy consumption can be monitored in real time.
  • Users can configure automatic trip/disconnection functions. Energy statistics can be reset manually or automatically at midnight for daily energy tracking and billing purposes.
  • Without requiring additional devices, the unit supports automatic reclosing and provides undervoltage, leakage current, and overcurrent protection.

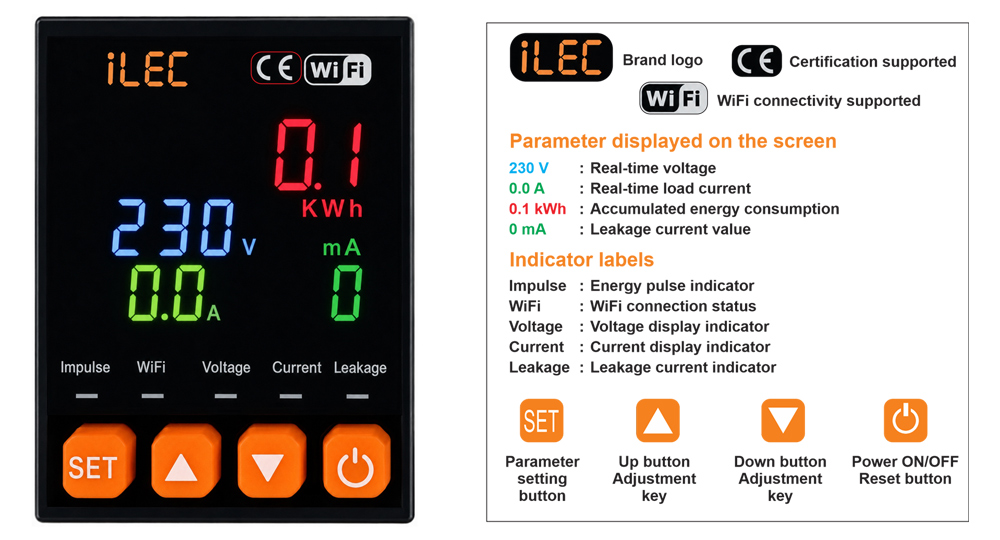

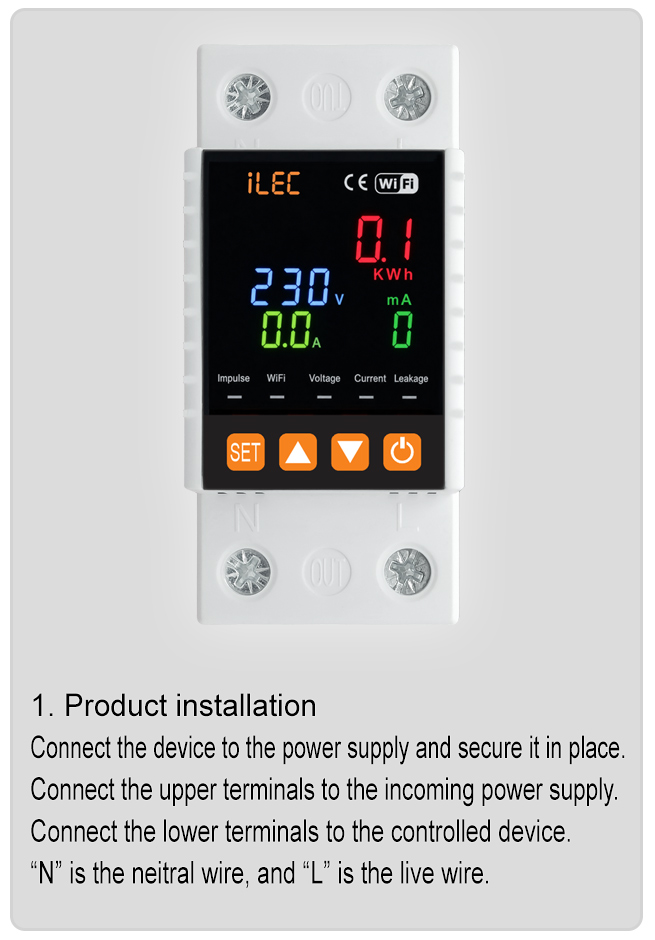

Front-Face Panel

SEP-63/1PN Front-Face Panel

Specifications

PARAMETER VALUE
Rated voltage AC 220V
Rated current 63A
Rated frequency 50/60Hz
Includtive 6kW (Motor type)
Resistive load 13kW (Electric heating and lighting)
Power consumption <2W
Ambient temperature -250ºC ~ 65C
Humidity <95%
Installation method DIN rail mounting
Control mode Manual / Mobile remote
Device setting
* Overvoltage setting
* Undervoltage setting
* Overcurrent setting
* Leakage current
* Delay setting
* 30V–300V, adjustable in 1V steps
* 110V–210V, adjustable in 1V steps
* 1A–63A, adjustable in 1A steps
* 10mA–100mA, adjustable in 1mA steps
* 1s–999s, adjustable in 1s steps
Display accuracy
* Volatge
* Current
* Leakage
* Delay setting
* 1V
* 0.1A
* 1mA
* 0.1kWh

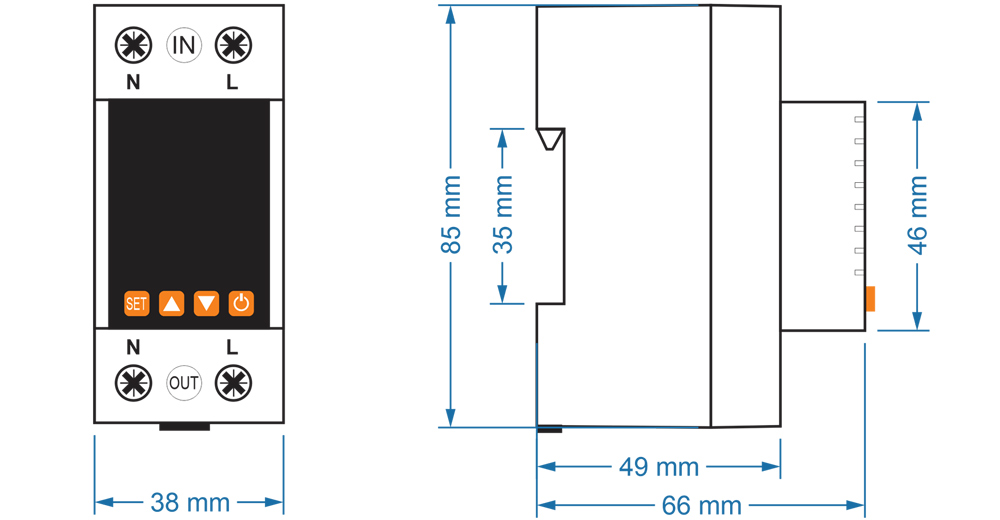

Dimension drawing

iLEC SEP-63/1PN – Dimension Drawing

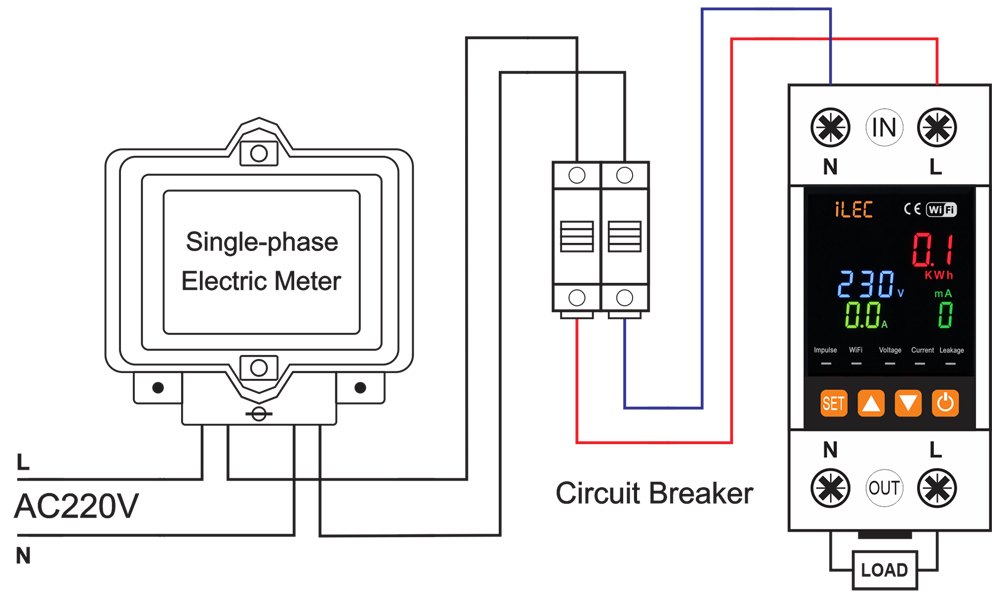

Wiring diagram

SEP-63/1PN relay – Wiring Diagram

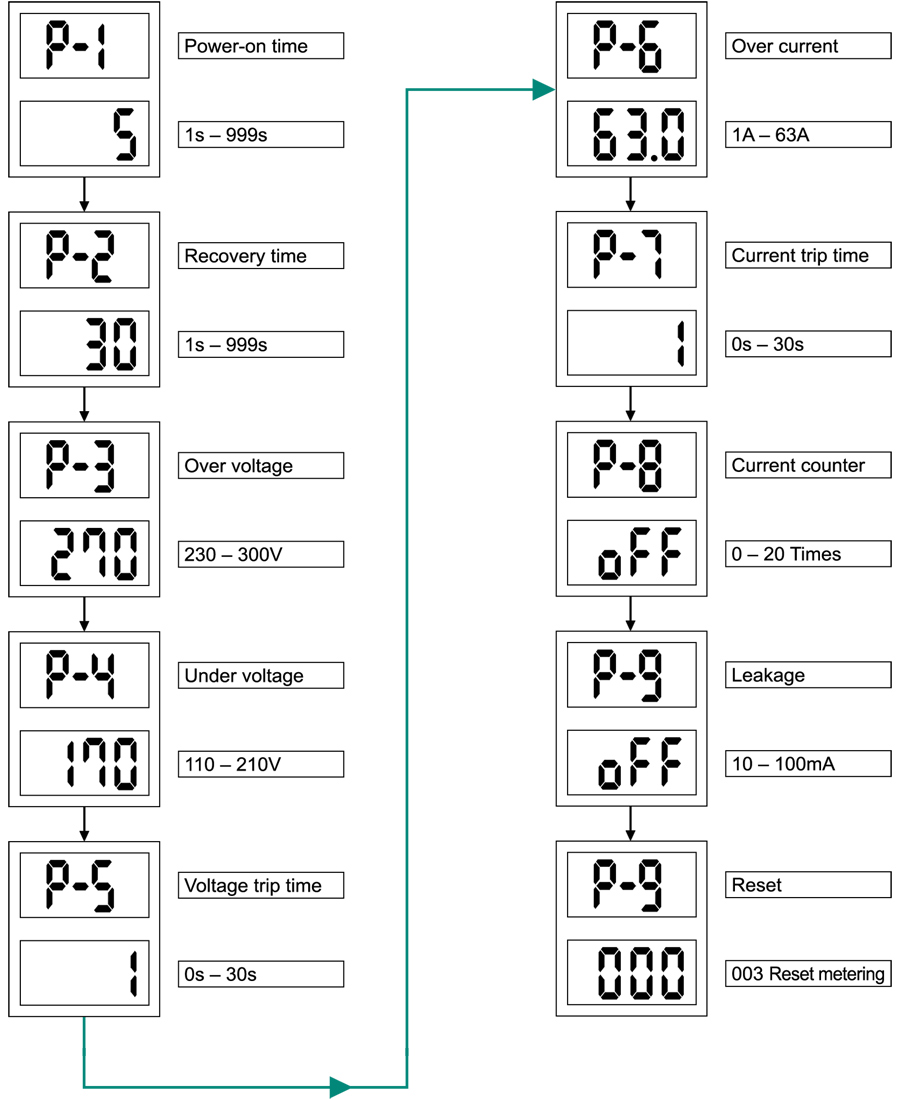

Product setting

SEP-63/1PN relay – Product setting

NETWORK OPERATION

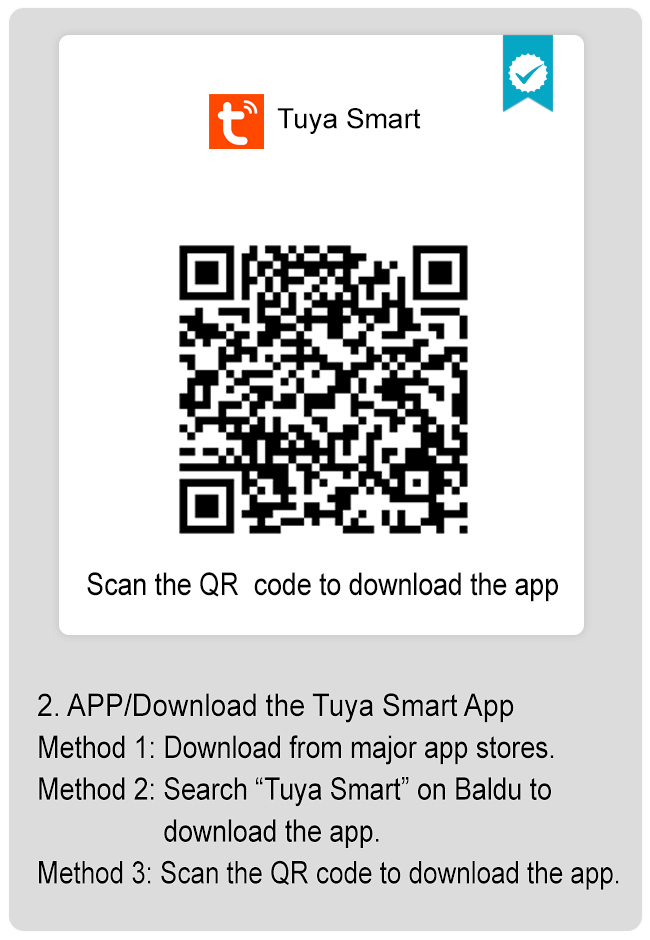

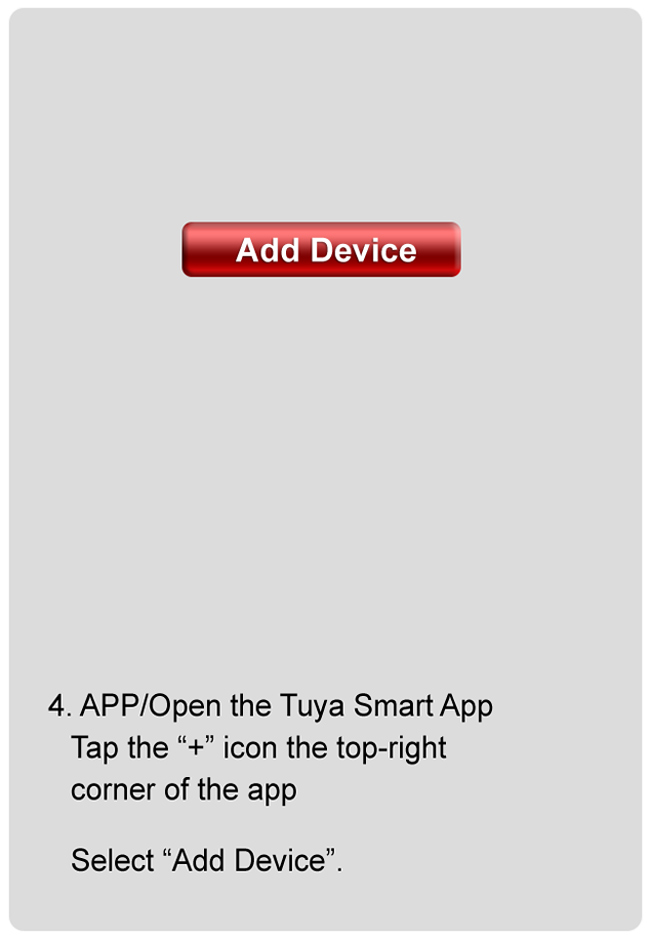

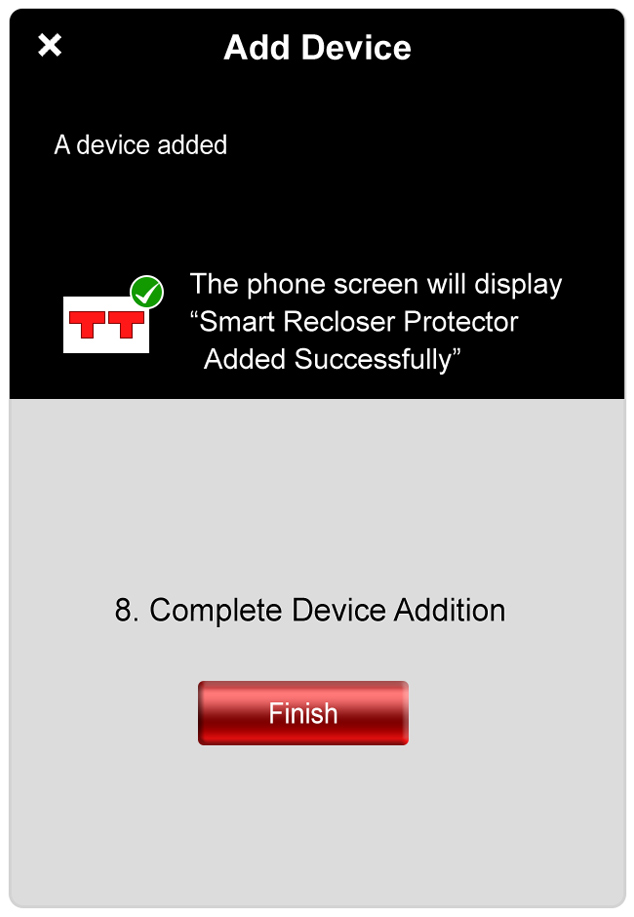

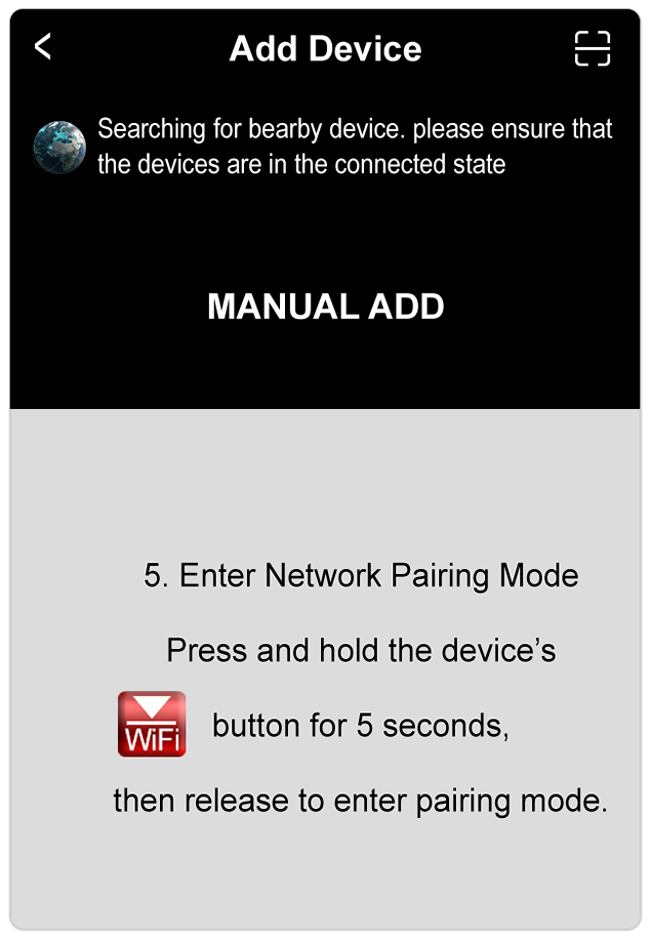

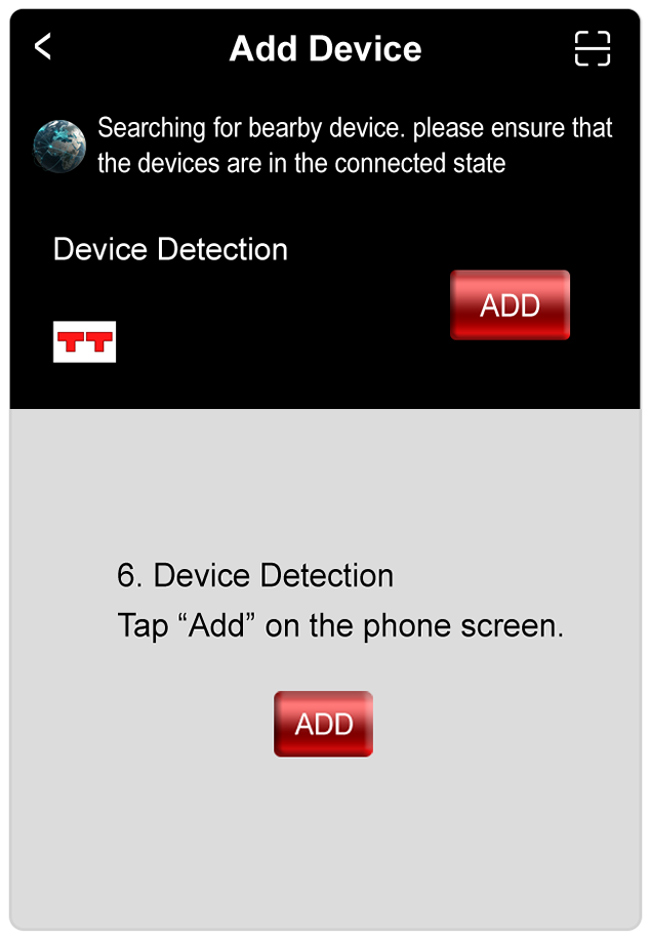

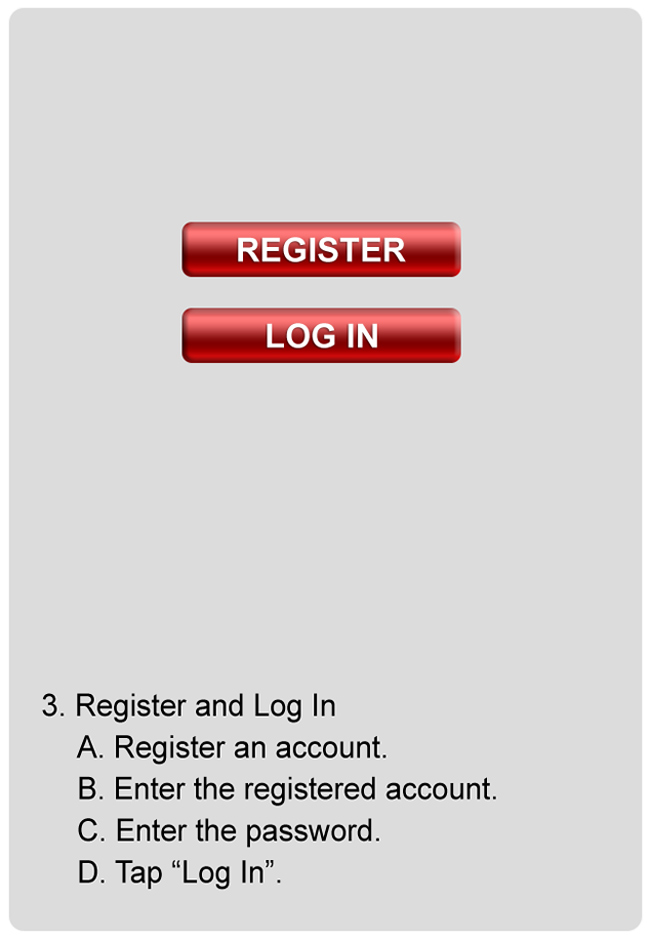

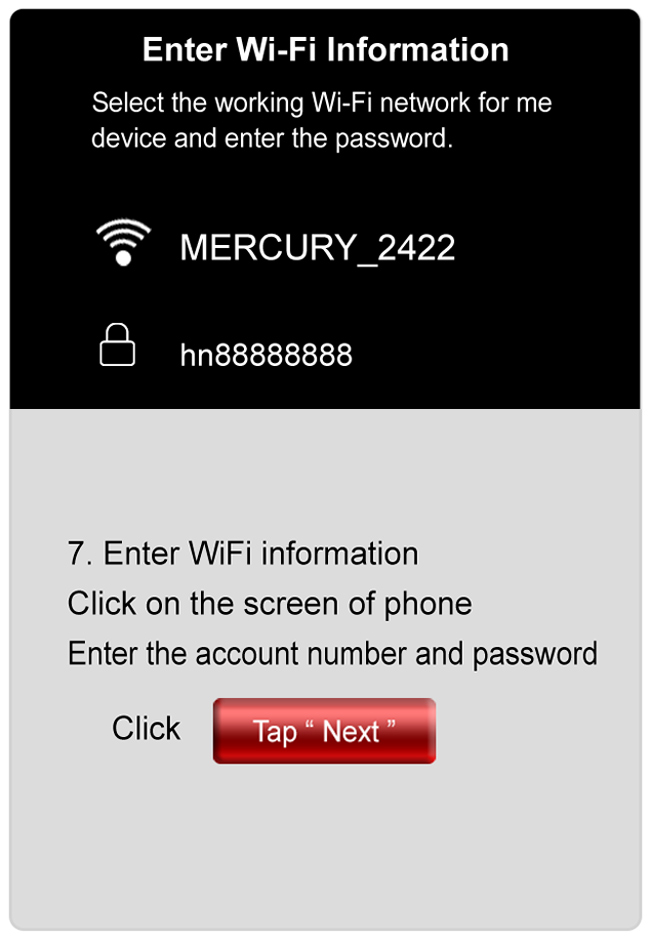

Mobile Network Operation Instructions
